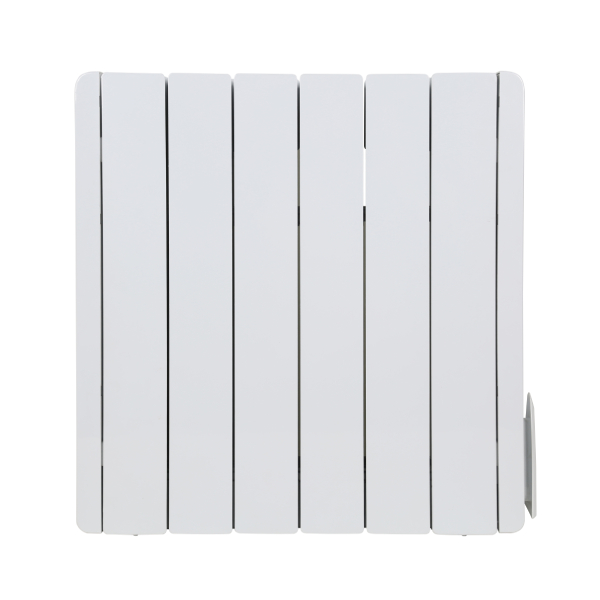

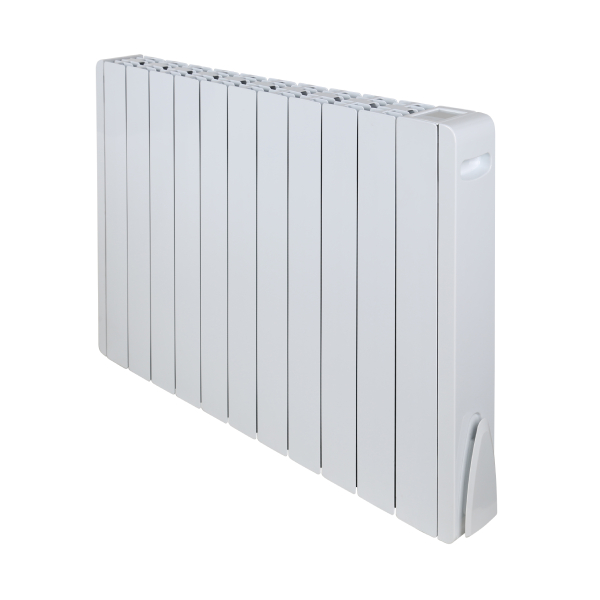

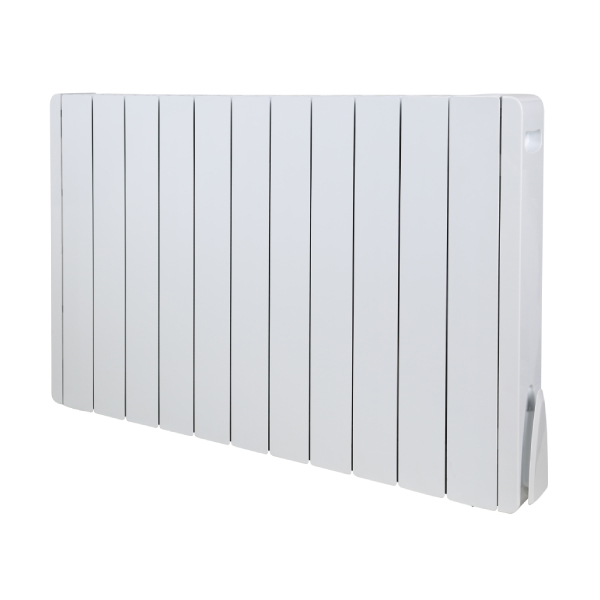

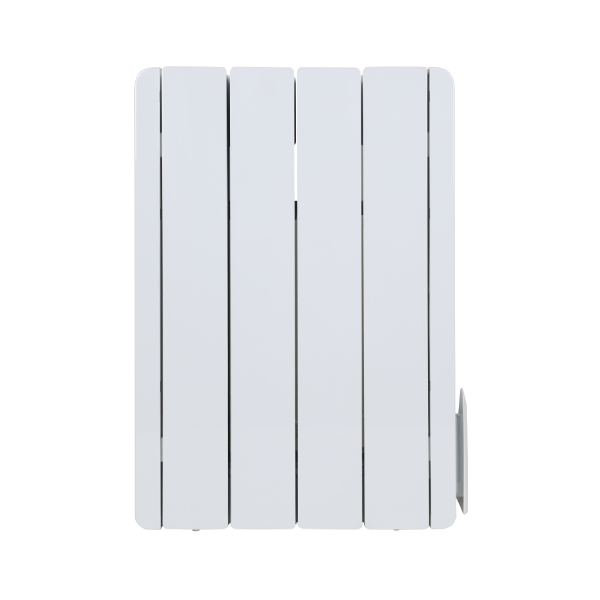

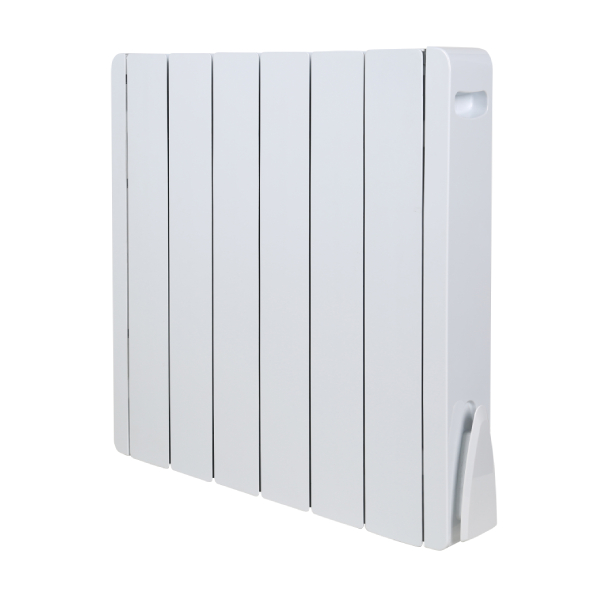

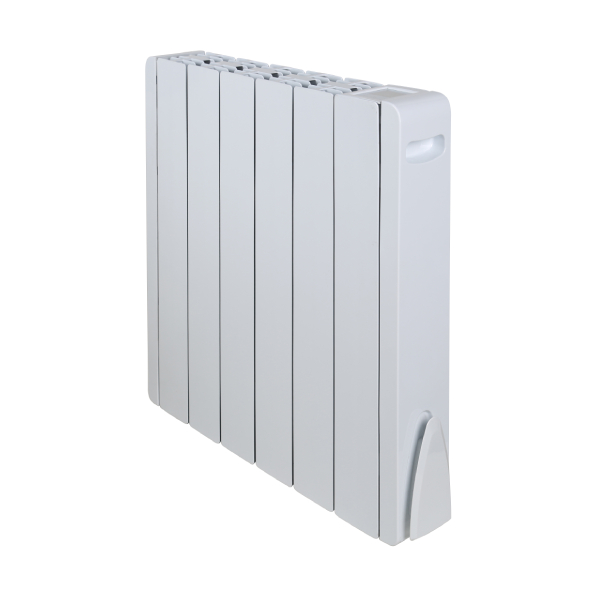

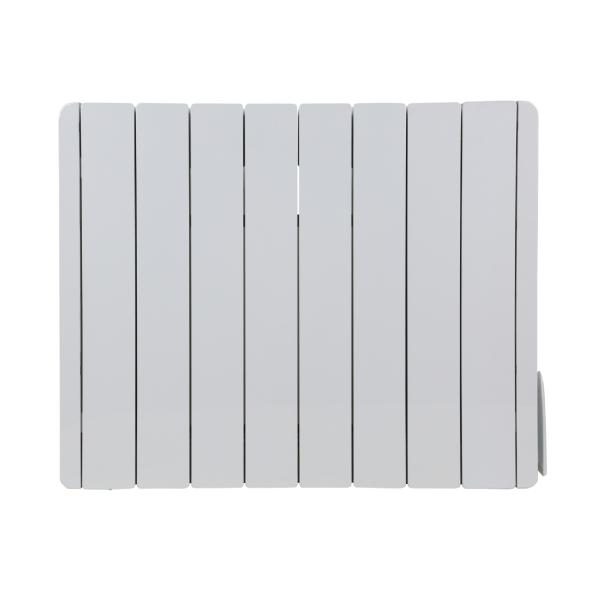

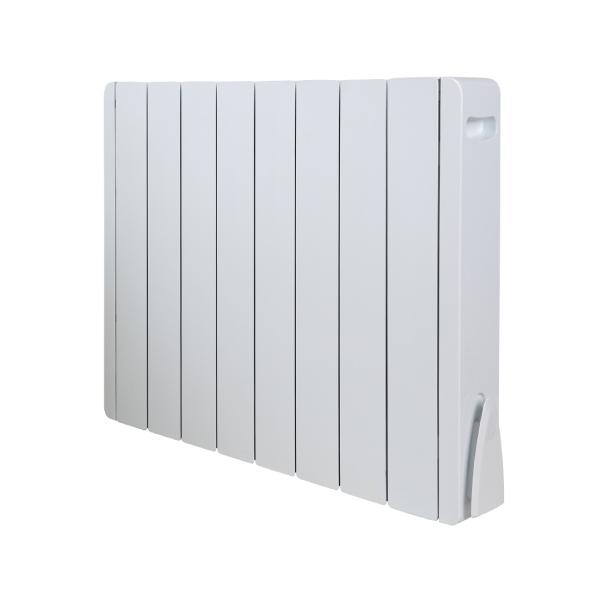

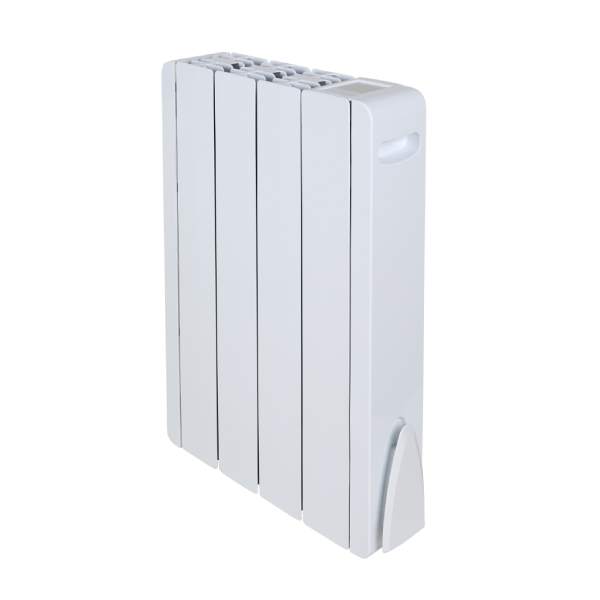

TRDC SERIES
• Modern Contemporary Design
• Wall Mounted
• Quick and Easy Installation
• Color: White
• Fin Dimension: 80mm
• Guarantee: 10 years body 3 years electronics
Control Features
• Digital Control
• Electronic Thermostat Accurate to +/- 0.2°C
• Temperature Setting Range, 7 – 30°C
• Touch Sensitive Control System with audio feedback
• 3 modes: Comfort, ECO, Low Mode
• LCD Display and Graphic Temperature Indication
• 7 Day Programmable User Timer
• Child Lock
• Smartphone APP control available (Tuya)
Technical Features
• Smart Open Window Technology, Instant Energy Waste Reduction
• Adaptive Temperature Control by Environment Learning
• Aluminum fin technology, Heating Up Fast, Aluminum fins optimize the heat distribution and reduce the warm-up time.
• Mute Technology
• Thermal Fluid Technology
• Intelligent Energy-Saving Technology, as the room temperature reaches the desired point, automatically transfer to low power and keep at the set temperature, resulting in user comfort and energy efficiency.
Safety Features
• Overheat Protection by Thermal Safety Cut-out
• Splash-proof to IP24 for use in bathrooms
• CE and UKCA compliance.
| Model | TRDA600 | TRDA1000 | TRDA1500 | TRDA2000 | |
| Fins | 3 | 5 | 7 | 9 | |
| Voltage (V) | 220-240V~ | 220-240V~ | 220-240V~ | 220-240V~ | |
| Frequency (Hz) | 50 | 50 | 50 | 50 | |
| Nominal Output (W) | 600 | 1000 | 1500 | 2000 | |
| IP Rating | IP24 | IP24 | IP24 | IP24 | |
| Height (mm) | 570 | 570 | 570 | 570 | |
| Width (mm) | 405 | 565 | 725 | 885 | |
| Depth (mm) | 85 | 85 | 85 | 85 | |
| Carton Size (mm) | 510x135x623 | 670x135x623 | 830x135x623 | 990x135x623 | |
| Net Weight (kg) | 7.31 | 9.83 | 12.55 | 15.17 | |
| Gross Weight (kg) | 8.38 | 11.42 | 14.45 | 17.49 | |
| Loading QTY (pcs) |
20ft | 652 | 496 | 400 | 336 |
| 40GP | 1352 | 1028 | 830 | 696 | |
| 40HQ | 1584 | 1206 | 974 | 816 | |
